Onboard air, ready when you need it. The CampBoss Twin Onboard 12V brushed Air Compressor combines a high-output twin-cylinder design with up to 140 LPM airflow for fast tyre inflation and a reliable onboard air supply.
Built for permanent vehicle installation, its compact footprint makes it a practical addition to your 4WD setup. Use it with the CampBoss Auto AirBoss to manage tyre pressures wherever your adventures take you.
Automatic thermal protection helps protect the compressor from overheating, while its IP55-rated construction provides resistance to dust and water ingress for dependable performance in off-road conditions.
Designed for 12V DC electrical systems only.
Better Together: Twin Onboard Compressor + Auto AirBoss
Take your onboard air setup to the next level. Pair the Twin Onboard Compressor with the Auto AirBoss to automatically inflate, deflate or equalise up to four tyres at once, with automatic shut-off at your selected PSI.
Key Features
-
High-output twin-cylinder design: Delivers up to 140 LPM airflow for convenient inflation of large 4WD tyres.
-
Permanent onboard installation: Keeps your air supply mounted in your vehicle and ready to use.
-
Automatic pressure control: A pressure switch cuts in at 120 PSI and cuts out at 150 PSI.
-
Thermal protection: Helps protect against excessive operating temperatures.
-
Dust and water resistance: IP55-rated construction suits demanding off-road environments.
-
Compatibility: Compatible with the CampBoss Auto AirBoss and all NITO style air fittings.

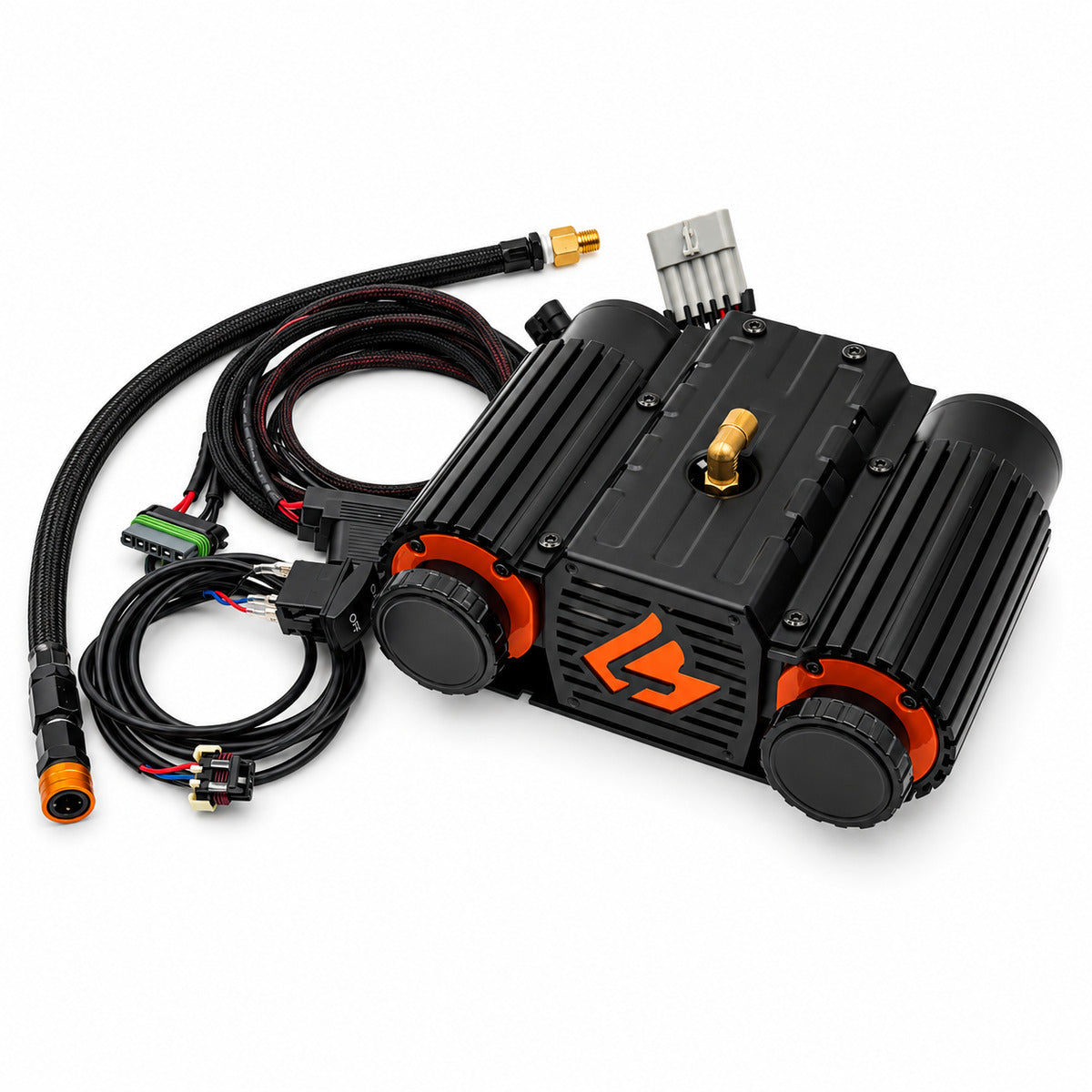

What’s Included
-

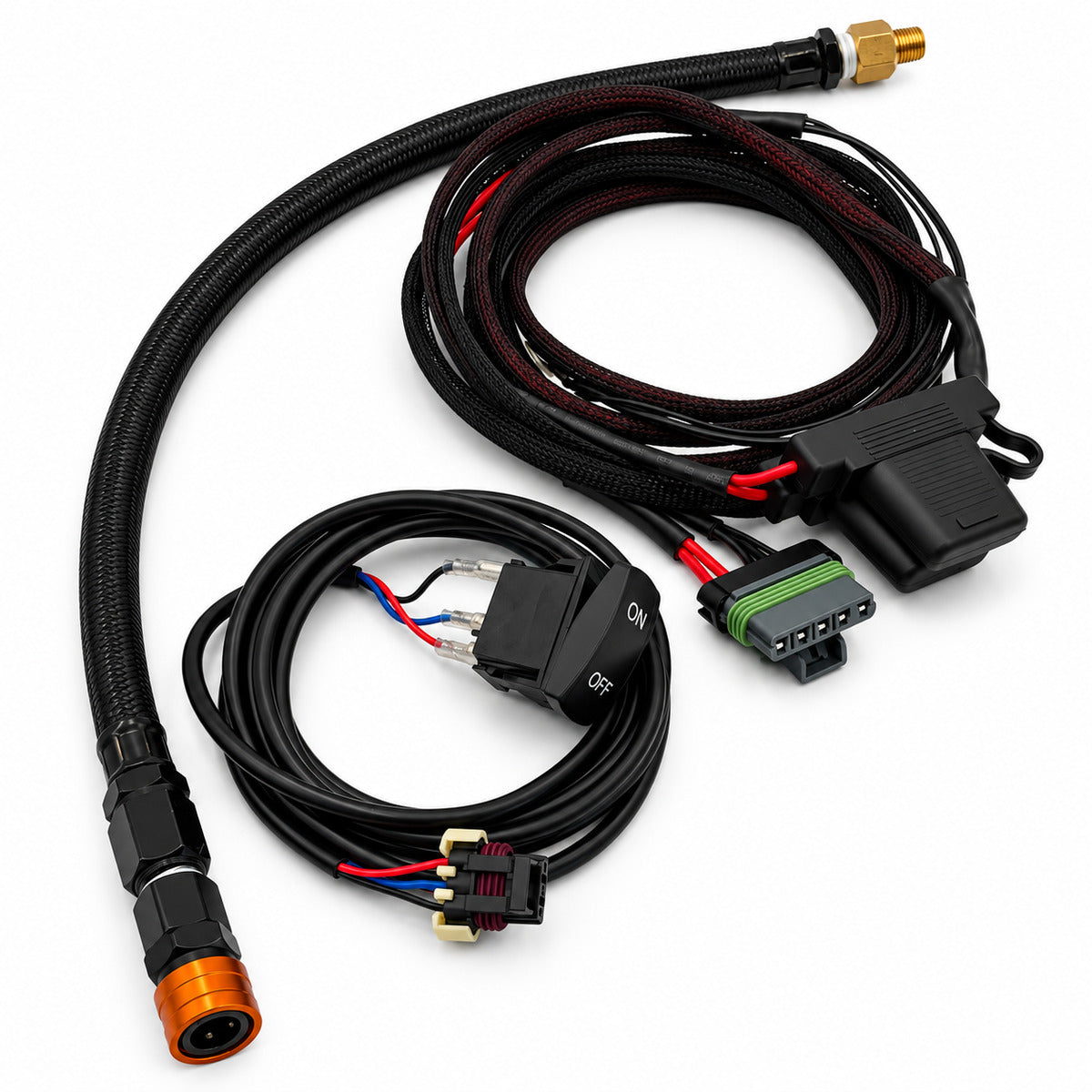

1 × Heavy-duty wiring loom with inline fuse holder
-
2 × Low-noise air filters
-
1 × Wiring harness with switch
-
1 × 600mm Stainless steel braided air hose including fittings
-
1 × Mounting hardware kit
1-year Australian Warranty: Enjoy peace of mind with full coverage
| Specification | Value |
|---|---|
| Compressor Type | Twin cylinder |
| Supply Voltage | 12V DC |
| Maximum Airflow | 140 LPM |
| Maximum Working Pressure | 150 PSI |
| Maximum Pressure | 300 PSI |
| Pressure Switch | 120 PSI cut-in / 150 PSI cut-out |
| Duty Cycle | 100% at 22°C |
| Ingress Protection | IP55 |
| Maximum Current Draw | 61 A |
| Circuit Protection | 2 × 40A inline fuse holders |
| Wiring Loom Length | 2.2 m |
| Compressor Dimensions | 290 × 240 × 130 mm |
| Compressor Weight | 8.9kg |
